Product Details
- Size: L*W*H (mm) 7008X2520X3277
- Place of Origin: china
- Brand Name: ENSIGN

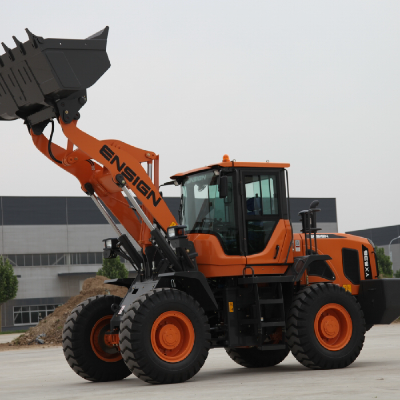

- Model Number: YX636
- Weight: 10500.000 kg
- :
- :
- :
| Technical Parameters | |||
| Bucket capacity(m³) | 1.2~3.0(standard bucket1.8) | Total cycle time(lift,dump&lower) | ≤9.2s |
| Rated load | 3000kg | Dump height/Dump angle | 2960mm/45° |
| Overall operating weight | 10500kg | Dump distance/Dump angle | 1040mm/45° |
| Max. traction force | ≥105kN | Min.ground clearance | 371.5mm |
| Max.breakout force | ≥100kN | Wheel base | 2850mm |
| Gradeability | 30° | Wheel tread | 1850mm |
| Min.turning radius(outer side of the bucket) | 5950mm | Departure angle | 30° |
| Min.turning radius(outer side of the tire) | 5346mm | Steering angle(left&right) | 38° |
| Overrall dimension(standard configuration) (mm) | 7008*2520*3277 | ||
| Model | Weichai Deutz WP6G125E22 | ||
- Size: L*W*H (mm) 7008X2520X3277
- Place of Origin: china
- Brand Name: ENSIGN
- Model Number: YX636
- Weight: 10500.000 kg
- :
- :
- :
